Basic compostion

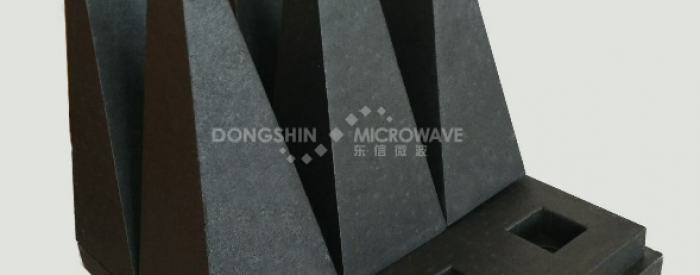

carbon and retardant chemicals loaded polystyrene foam
Operation temperature
-50℃~+70℃
Power handing
1000w/sqm
Enviroment
indoor use
Service life
40 years
Model
PFS and PFSH(hollow)for microwave broadband use ,PFSM working with ferrite
Feature
Made by mould,more precise size
closecell structure ,more stable performance and more clean environment and resistant to himidity
much longer service life
compliant with REACH and RoHS
Liget weight and ezsy installantion
closecell structure ,more stable performance and more clean environment and resistant to himidity
much longer service life
compliant with REACH and RoHS
Liget weight and ezsy installantion
| MODEL | HEIGHT | Reflectivity at Normal Incidence -dB(GHz) | SIZE | |||||||||
| NAME | (mm) | 0.2 | 0.3 | 0.5 | 1.5 | 3 | 5 | 10 | 15 | 40 | 100 | (mm) |
| PFS-250 | 250 | 17 | 25 | 40 | 45 | 55 | 55 | 55 | ＞40 | 600×600 | ||
| PFS-450 | 450 | 17 | 25 | 35 | 45 | 50 | 55 | 55 | 55 | ＞40 | 600×600 | |
| PFS-650 | 650 | 20 | 25 | 30 | 40 | 50 | 50 | 55 | 55 | 55 | ＞40 | 600×600 |
| MODEL NAME | HEIGHT (mm) | Reflectivity at Normal Incidence -dB(GHz) | SIZE (mm) | ||||||||
| 0.03 | 0.1 | 0.5 | 1.5 | 3 | 5 | 10 | 15 | 40 | |||
| PFSM-250 | 250 | 13 | 16 | 18 | 13 | 14 | 14 | 15 | 20 | 30 | 600×600 |
| PFSM-450 | 450 | 14 | 17 | 19 | 14 | 15 | 15 | 15 | 20 | 30 | 600×600 |
| PFSM-650 | 650 | 15 | 17 | 20 | 15 | 15 | 15 | 15 | 20 | 30 | 600×600 |
