Basic compostion

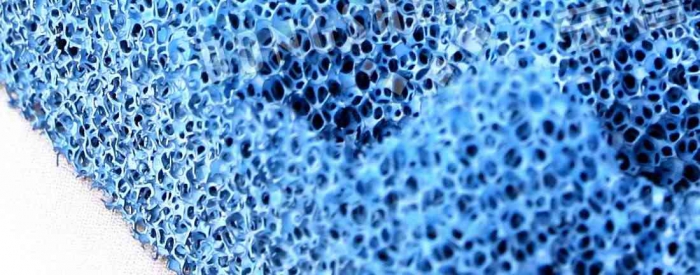

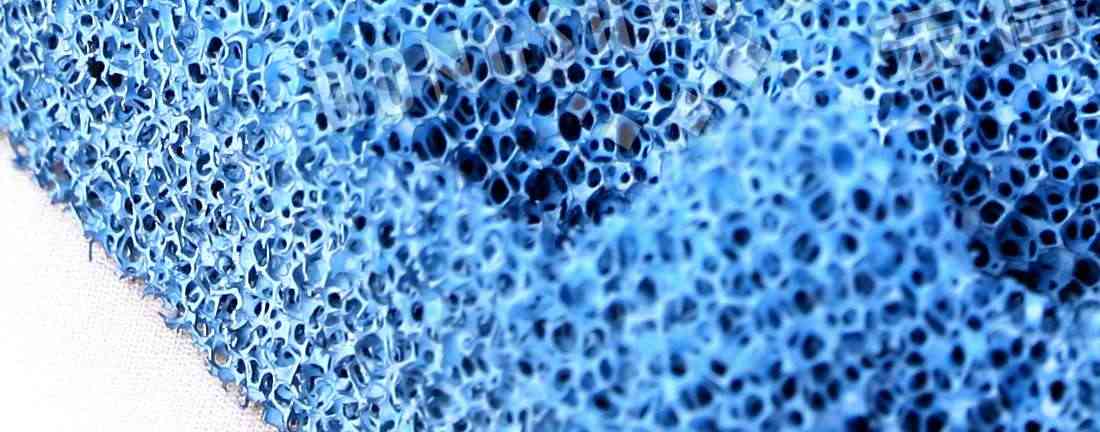

100% open cell foam load with carbon and retardant chemicals
Operation temperature
-50℃~+70℃
Power handing
3000w/sqm
Feature
resistant to moisture medium handing power,more wear resistant and 100% openCell for better vertilation
Application
medium power anechoic chamber,vent absorber for anechoic chamber.and inside microwave antenna

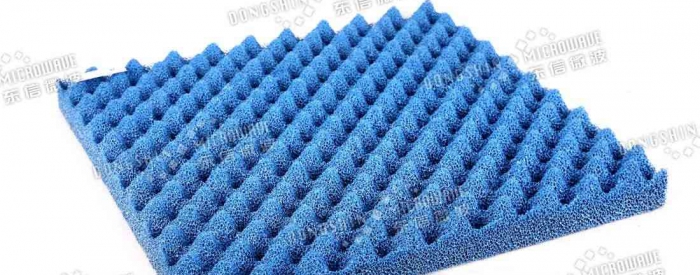

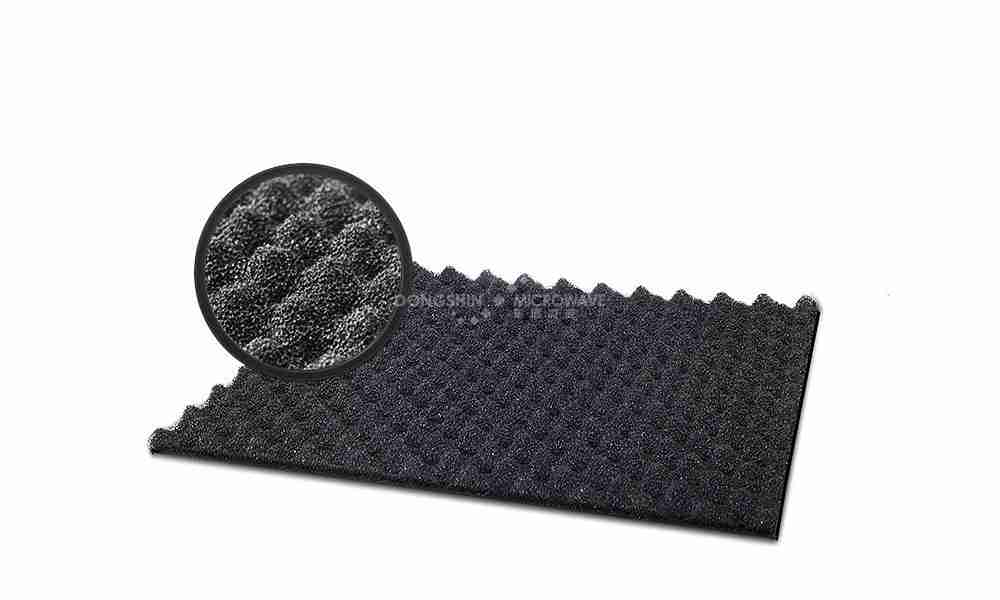

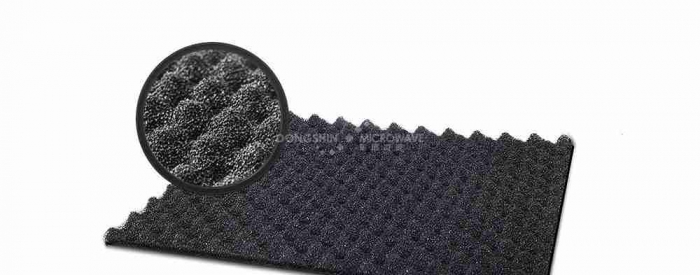

Shape
convoluted
Shape
convoluted
Performance
chart below
Application
chamber door vent and antenna
| Model | Thickness | Reflectivity(-dB) at normal @ frequency(GHz) | Size | |||||
| (mm) | 15 | 10 | 5 | 3 | 2 | (mm) | ||
| FRC-20 | 20 | 20 | 20 | 17 | 13 | 10 | 500×500 | |
| FRC-50 | 50 | 25 | 25 | 20 | 17 | 15 | 500×500 | |
