Composition
carbon and retardant chemicals loaded polyurethane foam
Operation temperature
-50℃~70℃
Retardancy
NRL 8093 I,II,III
Power handling
1000w/sqm
Environment
indoor use
Shape

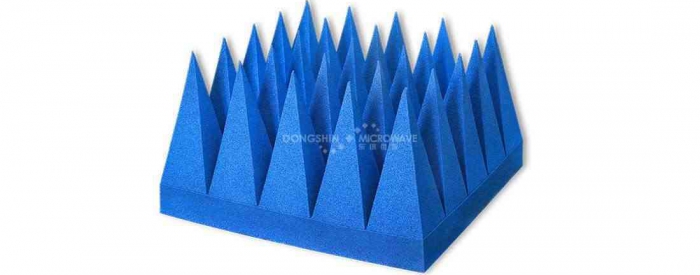

Pyramid
Thickness
500,700,1000mm
Feature
ferrite matched
Application
emc chamber
| MODEL NAME | HEIGHT (mm) | Reflectivity at Normal Incidence -dB(GHz) | SIZE (mm) | ||||||||
| 0.03 | 0.1 | 0.5 | 1.5 | 3 | 5 | 10 | 15 | 40 | |||
| SM-300/SMT-240 | 300/240 | 14 | 18 | 17 | 13 | 14 | 14 | 20 | 20 | 25 | 600×600 |
| SM-500/SMT-400 | 500/400 | 15 | 19 | 20 | 14 | 15 | 16 | 20 | 25 | 30 | 600×600 |
| SM-1000/SMT-800 | 1000/800 | 15 | 20 | 20 | 15 | 20 | 25 | 30 | 30 | 35 | 334×334 |
