Composition

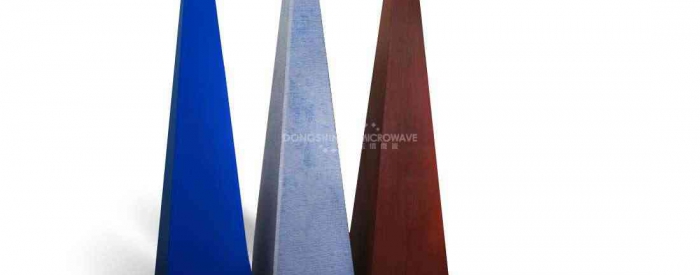

with size increasing ,SA becomber heavier and more tip drooping. The hollow pyramidal absorber CAH replaces SM,form 1.2m to 2m, making up for those deficiency.They are combination of multiple absorbing parts.CAH is only the polystyrene foam with wave absorbing film and only used in EMC chamber.

MODEL NAME	HEIGHT (mm)	Reflectivity at Normal Incidence -dB(GHz)											SIZE (mm)
MODEL NAME	HEIGHT (mm)	0.03	0.1	0.2	0.3	0.5	1.5	3	5	10	15	40	SIZE (mm)
CAH-1200	1200	9	17	25	27	28	30	35	40	40	40	40	400×400
CAH-1600	1600	13	20	25	30	30	35	40	40	40	40	40	400×400
CAH-2000	2000	15	25	30	35	35	37	40	40	40	40	40	500×500
CAH-2400	2400	17	30	33	35	35	37	40	40	40	40	40	600×600
