Composition
carbon and retardant chemicals loaded polyurethane foam
Operation temperature
-50℃~70℃
Retardancy
NRL 8093 I,II,III
Power handling
1000w/sqm
Environment
indoor use

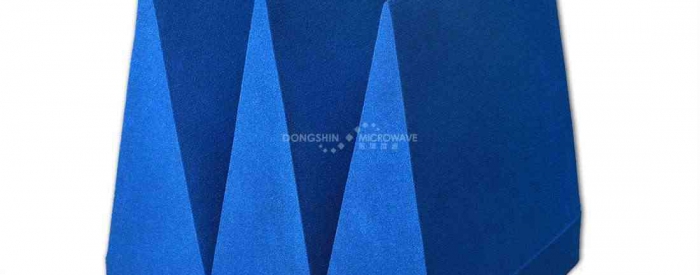

Shape
wedge
Thickness
30mm~700mm
Feature
low back scattering
Application
compact range room
| MODEL | HEIGHT | Reflectivity at Normal Incidence -dB(GHz) | SIZE | |||||||||
| NAME | (mm) | 0.1 | 0.2 | 0.3 | 0.5 | 1.5 | 3 | 5 | 10 | 15 | 40 | (mm) |
| SAW-100 | 100 | 15 | 20 | 25 | 30 | 35 | 40 | 500×500 | ||||
| SAW-300 | 300 | 20 | 27 | 37 | 40 | 47 | 47 | 50 | 500×500 | |||
| SAW-500 | 500 | 17 | 20 | 30 | 35 | 42 | 43 | 47 | 47 | 50 | 500×500 | |
| SAW-700 | 700 | 12 | 20 | 25 | 30 | 37 | 42 | 43 | 47 | 47 | 50 | 500×500 |
